DTY-10X Grain Slope Elevator

  • DTY-10X Grain Slope Elevator

Short Description:

Grain Slope Elevator is widely used in grain storage, grain processing, oil processing, grain food and grain feed industry. Grain slope elevator is suitable for the situation that the material needs to be transported at a certain distance in both the horizontal and vertical directions.


Product Detail

Production Case

  Application and function:

  It is widely used in grain storage, grain processing, oil processing, grain food and grain feed industry.

  Lift the material from the feeding hopper to the inlet of the processing equipment to provide stable feeding for the subsequent equipment.

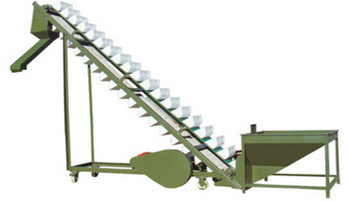

Grain Slope Elevator

  Principle and applicability

  The traction belt is around the head wheel and the bottom wheel, and the buckles are fixed on the traction belt according to a certain distance. The materials enter the moving buckets from the feeding hopper, and are lifted along the frame. The materials at the head of the machine are thrown out by the hopper and discharged out of the machine through the discharge pipe.

  The equipment is suitable for the situation that the material needs to be transported at a certain distance in both the horizontal and vertical directions. Low broken rate is widely used for materials, but the machine is still used for other materials that are more easily damaged, such as activated carbon and peanut kernel. This device is perfectly matched with gravity separator for lifting and return.


  Technical advantages

  1.Anti splashing grain device design, reduce the broken rate.

  2.The bucket is made of high-density polyethylene, which has excellent wear resistance and impact strength and long service life.

  3.Direct drive of reducer motor is adopted to realize stable, ultra-low speed operation, no noise and vibration.

  DTY-10X Slope Elevator:

  Specification:

  Model: DTY-10X

  Capacity(kg/h) :5000

  Power(kW):0.75

  Weight(kg):220

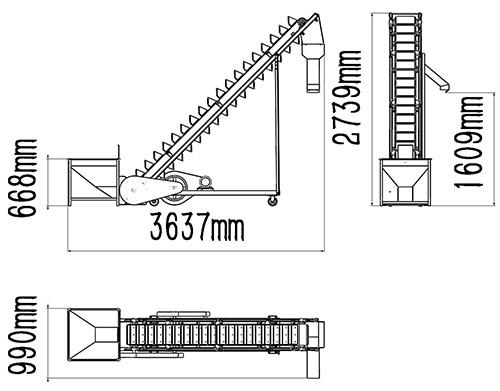

  Overall Size(mm):3620x960x2700

Slope Elevator
